HRL1000 Igogailu-mahai birakari elektrikoak

This HRL series lift table with a carousel turnable (rotating lift table) is a lift table with a rotating platform designed from the ground up with the operator in mind, placing the load where the operator determines the most comfortable working height.It doesn't matter how short or tall the individual is, since the operator determines the most comfortable working height. The Roto-Max provides complete flexibility to do the most ergonomically safe job with maximum efficiency.

The stationary scissor lift table is an electric fixed turntable that can lift or lower the rated load. The product features an integral turntable top, hand control, control cord, and power cord. Whether the load is one pound or 4400 lbs, the positioner height remains the same until the individual requests a change. With a lowered height of only 11.8", an operator has easy access to the top layer of product. The raised height is ideally suited for most applications., it can be rotated by 360 degree.

 option:hand contral or foot control for  Electric lift table with manual rotating

The stationary lift table with a carousel turntable is extra wide at the pivot point. Its contoured logs combine great strength with lower collapsed height. All pivot points have hardened pins that operate in lubricated-for-life, virtually maintenance-free bushings.

Mahaigaineko kargagailu elektrikoak HRL1000, HRL2000 modeloak ditu 1 tonako, 2 tonako edukierarekin.

▲ i-Lift altzairuzko zabalera handiko altzairuzko karratuari esker, paletak biratzen ari dira, estalkiak errazteko.

▲ Langileen segurtasuna hobetu laneko altuera erosorako zamak zehaztasunez altxatuz.

▲ Produktibitatea handitzen laguntzen du okertu eta iristen diren lesioak murrizten laguntzen duen bitartean.

▲ Eskuz edo oinez egiteko kontral aukera.

▲ Eredu hau goiko solairuko edo solairuko hobi aplikazioetan erabil daiteke.

 option:hand control with electric lift&rotate function

i-igogailua No.13136051313606
ModelHRL1000HRL2000
aforoa kg (lb).1000(2200)2000(4400)
Min.height mm (ere).330(13)
Max.height mm (ere).710(28)
Eraztun birakaria, kanpoko dia. mm (ere).1110(44)
Oinarriaren markoaren luzera mm (ere).930(36.6)
Oinarriaren markoaren zabalera mm (ere).920(36.2)
Pisu garbia kg (lb).208(457.6)217(477.4)

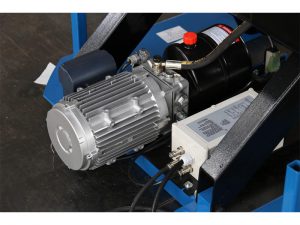

Power Pack380V / 1.1kw380V / 2.2KW
AukeraLifting ModeHand Control/Foot Control
Rotating ModeHand/Electric
